LDPE HDPE Automatic Bag Making Machine With Zipper Function
Product Details:
| Place of Origin: | JIANGYIN |
| Brand Name: | XINLEI |
| Certification: | Letters Patent |
| Model Number: | XLRQ-600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wrapping Film |
| Delivery Time: | 35-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 set per month |
|
Detail Information |
|||
| Material: | LDPE HDPE | Main Drive: | Seovo Motor |
|---|---|---|---|
| Bag Speed: | 100pcs/min | Unwinding Width: | Within 1200mm |
| Bag Width: | Within 500mm | Voltage: | 380V50Hz |
| Power: | 10.5kw | Weight: | 2200kg |
| High Light: | LDPE Automatic Bag Making Machine,HDPE Automatic Bag Making Machine,automatic plastic bag making machine 10.5kw |
||
Product Description

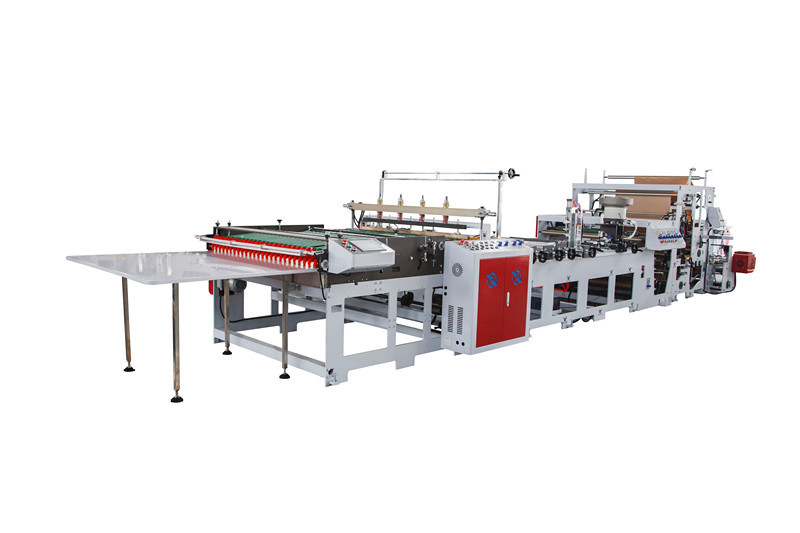

High Speed Automatic Bag Making Machine With Zipper Function
The machine is suitable for making zipper bags.
The machine equipped with side sealing zipper device,ultrasonic,automatic zipper and no material alarm.
The machine main control center adopts PLC and touch screen to display bag making speed,bag making length setting and automatic bag making counting.
The main drive and feeding are controlled by servo motor.
Main Technical Parameters
| Material | LDPE,HDPE etc. |
| Unwinding Width | ≤1200mm |
| Unwinding Diameter | ≤800mm |
| Bag Width | ≤500mm |
| Bag Length | ≤550mm |
| Machine Speed | 150pcs/min |
| Bag Speed | 300-400m 100pcs/min |
| Power Supply | 380V50Hz |
| Total Power | 10.5KW |
| Dimension |
6020*1400*1650mm 2000*1200*1150mm 1860*850*1200mm |
| Machine Weight | 2200KG |
Pictures as reference
Detailed Images
Want to Know more details about this product
