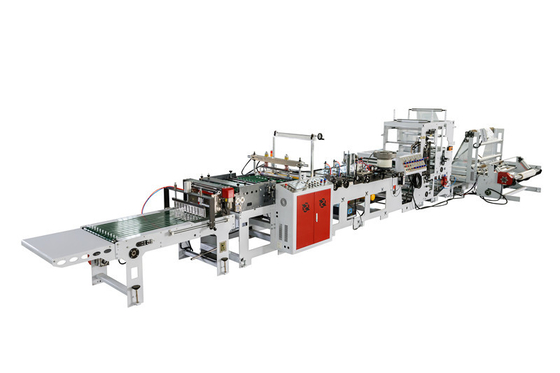

Side Sealing Zipper Bag Making Machine LDPE HDPE 10.5kw
Product Details:
| Place of Origin: | JIANGYIN |
| Brand Name: | XINLEI |
| Certification: | Letters Patent |
| Model Number: | XLRQ-600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wrapping Film |
| Delivery Time: | 35-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 set per month |
|
Detail Information |
|||
| Material: | LDPE HDPE | Main Drive: | Seovo Motor |
|---|---|---|---|
| Bag Speed: | 100pcs/min | Bag Width: | Within 500mm |
| Voltage: | 380V50Hz | Power: | 10.5kw |
| Weight: | 2200kg | Driven Type: | Electric |
| High Light: | Side Sealing Zipper Bag Making Machine,Zipper Bag Making Machine 10.5kw,zip lock bag making machine HDPE |
||
Product Description
Side Sealing Zipper Bag Making Machine With Total Power 10.5kw
The machine is suitable for making hot zipper bags.
The machine equipped with side sealing zipper device,ultrasonic,automatic zipper and no material alarm.
The machine main control center adopts PLC and touch screen to display bag making speed,bag making length setting and automatic bag making counting.
The main drive and feeding are controlled by servo motor.
Main Technical Parameters
| Material | LDPE,HDPE etc. |
| Unwinding Width | ≤1200mm |
| Unwinding Diameter | ≤800mm |
| Bag Width | ≤500mm |
| Bag Length | ≤550mm |
| Machine Speed | 150pcs/min |
| Bag Speed | 300-400m 100pcs/min |
| Power Supply | 380V50Hz |
| Total Power | 10.5KW |
| Dimension |
6020*1400*1650mm 2000*1200*1150mm 1860*850*1200mm |
| Machine Weight | 2200KG |
Pictures as reference
Detailed Images
