380V 15KW HDPE LDPE Film Gusset Machine Internal film Embossing machine
Product Details:
Place of Origin: | JIANGYIN |
Brand Name: | XINLEI |
Certification: | Letters Patent |
Model Number: | XLC-800 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | Negotiable |
Packaging Details: | Wrapping Film |
Delivery Time: | 30-40 work days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1 set per month |
Detail Information |
|||
Material: | HDPE LDPE | Voltage: | 380V |
---|---|---|---|
Condition: | New | Power: | 15kw |
Speed: | 175m/min | Warranty: | 1 Year |
High Light: | HDPE Gusset Machine,LDPE Film Gusset Machine,Internal film Embossing machine |
Product Description

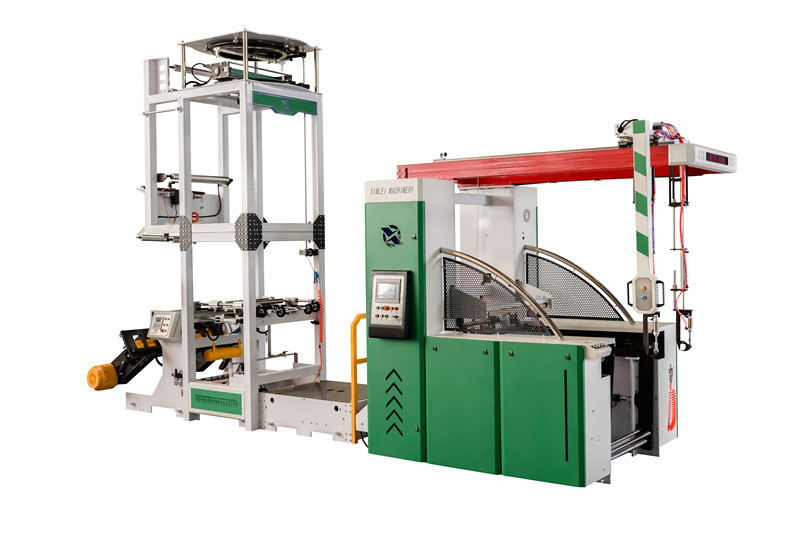

380V 15KW Internal Embossing Machine With Gusset Of HDPE LDPE Film
The machine adopts steel palte and steel frame structure.The feeding adopts automatic tension control.
The main drive adopts variable frequency motor speed reducer control.
The main control center adopts PLC and touch screen to show the speed of gusset insertion.
The internal embossing device adopts embossing wheel through air floating embossing.
Main Technical Parameters
Material | HDPE LDPE |
Unwinding Width | ≤800mm |
Unwinding Diameter | ≤1200mm |
Rewinding Width | ≤1500mm |
Rewinding Diameter | ≤600mm |
Speed | 175m/min |
Power Supply | 380V |
Power | 15kw |
Machine Weight | 3800kg |
