Plastic Film PE PP Gusset Machine 300m/Min 5KW 3500X1650X2800mm
Product Details:
| Place of Origin: | JIANGYIN |
| Brand Name: | XINLEI |
| Certification: | Letters Patent |
| Model Number: | XLGC-600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wrapping Film |
| Delivery Time: | 15-20 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 set per month |
|
Detail Information |
|||
| Material: | LDPE HDPE CPP | Drive Model: | Servo Motor |
|---|---|---|---|
| Master Control Center: | PLC | Machine Speed: | Less Than 300m/min |
| Tension: | Automatic Tension | Voltage: | 380V |
| Weight: | 1950kg | Total Power: | 5kw |
| Condition: | New | Dimension: | 3500*1650*2800mm |
| High Light: | Plastic Film Gusset Machine,PE PP Gusset Machine,gusset bag packaging machine 5KW |
||
Product Description
Plastic Film PE PP Gusset Machine High Speed
The machine adopts steel plate and steel frame structure.
This machine unwinding and rewinding are automatic controlled by cylinder .
The main driver adopts vector frequency motor ,rewinding adopts servo motor.
The speed of the machine is less than 300 meters per minute,is suitable for inserting edge rewinding of toilet paper bags, sanitary bags, shopping bags and other tube material.
Main Technical Parameters
| Material | LDPE.HDPE.CPP.etc |
| Unwinding Width | ≤700mm |
| Uwinding Diameter | ≤1000mm |
| Rewinding Diameter | ≤800mm |
| Machine Speed | ≤300m/min |
| Power Supply | 380V50Hz |
| Total Power | 5KW |
| Machine Dimension | 3500*1650*2800mm |
| Machine Weight | 1950KG |

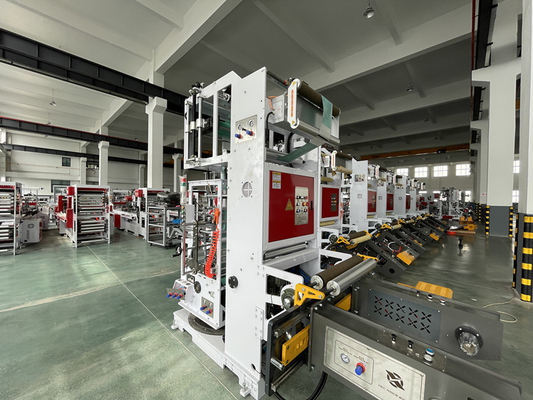

pictures as reference
Detailed Images
