Outside Patch Bag Making Machine LDPE HDPE Servo Motor 6400X1240X1650mm
Product Details:
| Place of Origin: | JIANGYIN |
| Brand Name: | XINLEI |
| Certification: | Letters Patent |
| Model Number: | XLZD-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wrapping Film |
| Delivery Time: | 15-20 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 4 set per month |
|
Detail Information |
|||
| Voltage: | 380V 50Hz | Material: | LDPE HDPE |
|---|---|---|---|
| Condition: | New | Warranty: | One Year |
| After-sales Service Provided: | Online Support | Certification: | CE,CE/ISO9001 |
| Dimension: | 6400*1240*1650mm | Weight: | 2050kg |
| High Light: | Outside Patch Bag Making Machine,Patch Bag Making Machine LDPE,HDPE automatic carry bag making machine |
||
Product Description
High Speed Outside Patch Bag Making Machine With Servo Motor
This machine adopts PLC center control, display and operation in touch screen.
The machine is equipped with double photoelectric control ,feeding control by servo motor,.
This machine has these functions of automatic counting, punching, and conversion of white bags and color bags.
The machine also has waste suction device,it can set time to take out the waste.
Main Technical Parameters
| Material | LDPE.HDPE.etc |
| Machine Speed | 120pcs/min |
| Unwinding Width | ≤400mm |
| Unwinding Diameter | ≤1000mm |
| Bag Speed | 80pcs/min |
| Bag Width | ≤400mm |
| Bag Length | ≤1000mm |
| Total Power | 8.5KW |
| Machine Dimension | 6400*1240*1650mm |
| Machine Weight | 2050KG |

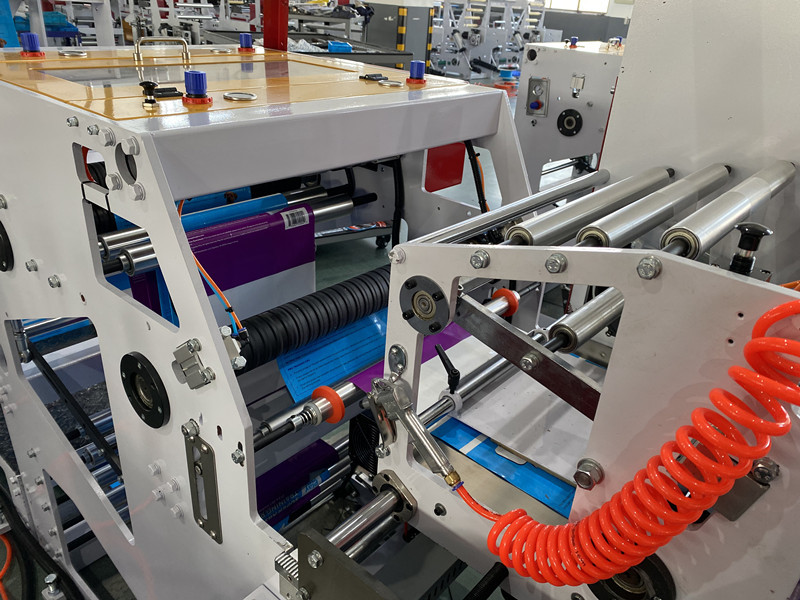

Pictures as reference
Detailed Images
