Sanitary Napkin Euro Bag Making Machine
Product Details:
Place of Origin: | JIANGYIN |
Brand Name: | XINLEI |
Certification: | Letters Patent |
Model Number: | XLOSD-400 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | Negotiable |
Packaging Details: | Wrapping Film |
Delivery Time: | 20-30 work days |
Payment Terms: | L/C, T/T |
Supply Ability: | 2 set per month |
Detail Information |
|||
Voltage: | 220v-380v50Hz | Condition: | New |
---|---|---|---|
Dimension(l*w*h): | 6570*1130*1520mm,2120*2240*2010mm,1110*820*680mm | After-sales Service Provided: | Online Support,Video Technical Support |
Power: | 15kw | Material: | LDPE HDPE |
Product Description
Sanitary Napkin Euro Bag Making Machine
The machine is suitable for making sanitary napkin euro bags.
The whole equipment adopts steel plate and steel frame structure.
This machine adopts servo automatic tension to control tension.
The machine has no material alarm device,when the material is almost finished,it will alarm in advance.
The main control center adopts PLC and touch screen control to diaplay bag making speed,bag making length setting and automatic bag making counting.
Main Technical Parameters
Material | LDPE,HDPE |
Unwinding Width | ≤800mm |
Unwinding Diameter | ≤1000mm |
Bag Speed | 200m 100psc/min |
Machine Speed | 120psc/min |
Bag Width | ≤400mm |
Bag Length | ≤550mm |
Power Supply |
220V-380V 50Hz |
Total Power | 15KW |
Machine Weight | 3500KG |

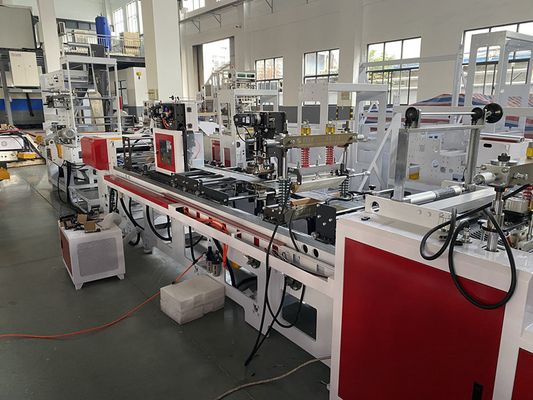

Pictures as reference
Detailed Images
