Automatic Soft Diaper Bag Making Machine 80 pcs/min 8KW
Product Details:
| Place of Origin: | JIANGYIN |
| Brand Name: | XINLEI |
| Certification: | Letters Patent |
| Model Number: | XLHB-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wrapping Film |
| Delivery Time: | 40-50 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1set per month |
|
Detail Information |
|||
| Machine Type: | Bag Making Machine | Voltage: | 220V-380V50Hz |
|---|---|---|---|
| Material: | PP,PE | Condition: | New |
| Weight: | 4000kg | Warranty: | One Year |
| Certification: | CE/ISO9001 | Power: | 8kw |
| High Light: | Soft diaper bag making machine,Automatic diaper bag making machine,bag production machine 8KW |
||
Product Description
Automatic Soft Handbag Bag Making Machine
The machine adpots steel plate structure.Automatic tension coltrolled.Main drive,outfeeding and rewinding controlled by servo motor.The main control center adopts PLC and touch screen to display bag making speed,bag making length setting and automatic bag making counting.The machine is equipped with no material alarm and the bag making speed will slow down.
Main Technical Parameters
| Material | HDPE,LDPE etc. |
| Unwinding Width | ≤1600mm |
| Unwinding Diameter | ≤800mm |
| Machine Speed | 80pcs/min |
| Bag Speed | 300-400m 50-55pcs/min |
| Bag Width | ≤600mm |
| Bag Length | ≤550mm |
| Power Supply | 220V-380V50Hz |
| Total Power | 8KW |
| Dimension |
2700*1300*1150mm 2850*1650*1800mm 1800*1250*1620mm 4200*1700*1630mm 2200*750*930mm |
| Machine Weight | 4000KG |
Common unwind device
1) Unwinding adopt common loading
2) Adopt magnetic powder tension control. Manual adjust the tension.
3) Unwinding with EPC
4) Triangle folding device, which can adjustment
Top-folding continuously sealing device
1) The adjustable heat sealing available after top folding,seals top fold longitudinally and continuously,the width size of bag is not be limited
2) Inside heating wire sealing, which suitfor full colours of bag.

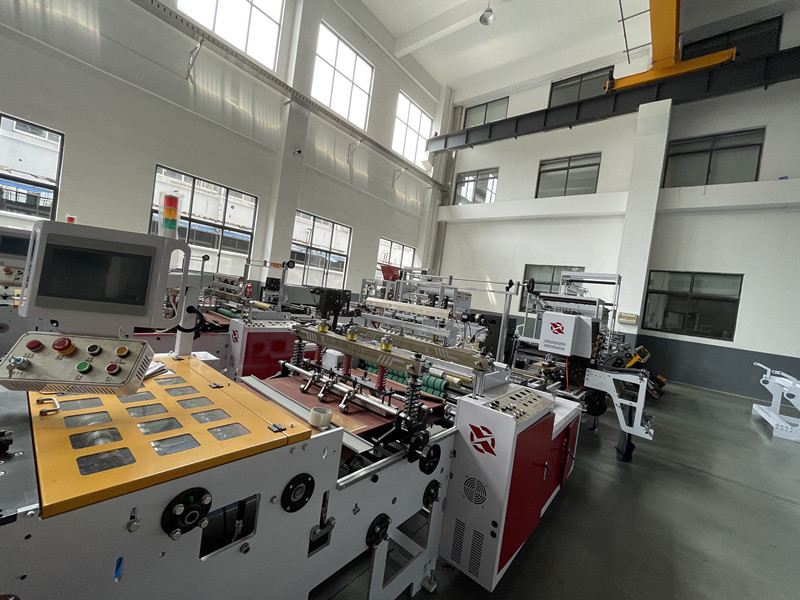

Pictures as reference
Detailed Images
About Us
Jiangyin ShiXuan Machinery is an integrated company which has gathered development, researching, manufacturing and marketing together. The company abides by the purpose of ′Innovation drives development, quality wins the market′.
Our company can supply customized service for global customers. According to customers′ demand, we can design products and supply long term integrative service of producing, installing and debugging. For service, our company can supply long term technical.
FAQ
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 5days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also car fare.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
