Euro Style Tissue Bag Making Machine 1200mm With Rope
Product Details:
| Place of Origin: | JIANGYIN |
| Brand Name: | XINLEI |
| Certification: | Letters Patent |
| Model Number: | XLNCT-600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wrapping Film |
| Delivery Time: | 30-40 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 set per month |
|
Detail Information |
|||
| Material: | LDPE HDPE | Type: | Bag Making Machine |
|---|---|---|---|
| Bag Type: | Rope Tissue Bag | Main Drive: | Servo Motor |
| Voltage: | 220v-380v50Hz | Unwinding Width: | Within 1200mm |
| Condition: | New | Power: | 10kw |
| High Light: | Tissue Bag Making Machine,Euro Style Bag Making Machine,disposable carry bags machine 1200mm |
||
Product Description
Euro Style Tissue Bag Making Machine With Rope
The machine is suitable for making rope tissue bag.It is automatic tension control.
The machine is equipped with no material alarm.
The main drive and feeding are controlled by servo motor.
The EPC improves the stability of the machine.
Main Technical Parameters
| Material | HDPE LDPE etc. |
| Unwinding Width | within 1200mm |
| Unwinding Diameter | within 800mm |
| Bag Speed | 300-400m 60-65pcs/min |
| Machine Speed | 80pcs/min |
| Bag Width | within 600mm |
| Bag Length | within 550mm |
| Power Supply | 220V-380V50Hz |
| Total Power | 10LW |
| Machine Weight | 3500KG |
| Dimension |
5150*1300*1600mm 2200*1250*1500mm 2150*1550*1550mm 1820*1170*1550mm |

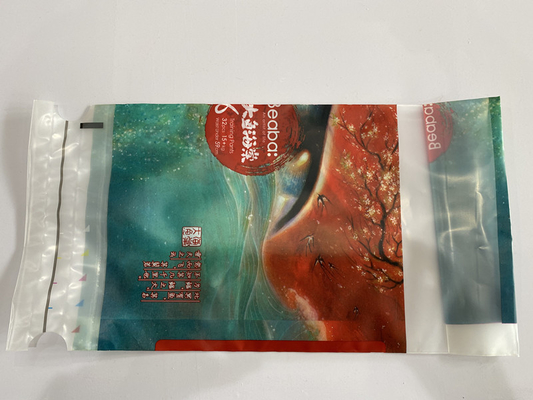

Pictures as reference
Detailed Images
