Unwinding 800mm Bag Folding Machine POF HDPE LDPE CPP
Product Details:
| Place of Origin: | JIANGYIN |
| Brand Name: | XINLEI |
| Certification: | Letters Patent |
| Model Number: | XLZ-400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wrapping Film |
| Delivery Time: | 7-10 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2 set per week |
|
Detail Information |
|||
| Material: | POF,HDPE,LDPE,CPP Etc. | Voltage: | 380V50-60Hz |
|---|---|---|---|
| Power: | 6KW | Certification: | CE/ISO9001 |
| Machine Type: | Folding Machine | Folding Speed: | ≤230m/min |
| High Light: | Unwinding 800mm Bag Folding Machine,Bag Folding Machine POF HDPE LDPE,fold and seal machine CPP |
||
Product Description

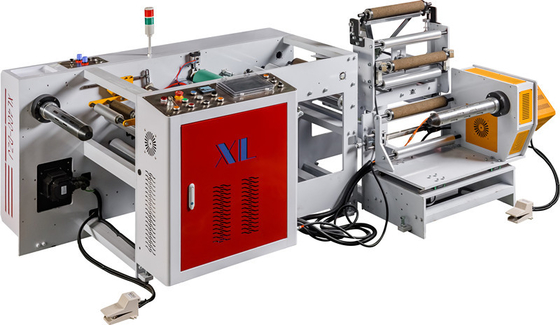

Unwinding 800mm High Speed Medicine Bag Folding Machine
The machine adopts steel plate structrue,automatic tension control,display and operation in touch screen.
The main drive ,outfeeding and rewinding are controlled by servo motor.
The machine equipped with no material alarm device.
The machine is fitted with safety shield and the dangerous parts are posted with warning signs.
Main Technical Parameters
| Material | LDPE,HDPE,POF etc. |
| Unwinding Width | ≤400mm |
| Unwinding Diameter | ≤800mm |
| Folding Speed | 230m/min |
| Power Supply | 380V50/60Hz |
| Total Power | 6KW |
| Dimension |
1950*1090*920mm 1280*1020*1090mm |
| Machine Weight | 720KG |
Pictures as reference
Detailed Images
