12kw Plastic Bag Manufacturing Equipment Gusset 120pcs/Min
Product Details:
Place of Origin: | JIANGYIN |
Brand Name: | XINLEI |
Certification: | Letters Patent |
Model Number: | XLCZY-500 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | Negotiable |
Packaging Details: | Wrapping Film |
Delivery Time: | 15-20 work days |
Payment Terms: | L/C, T/T |
Supply Ability: | 4 set per month |
Detail Information |
|||
Power: | 12kw | Machine Type: | Bag Making Machine |
---|---|---|---|
Bag Type: | Tissue Bag | Material: | LDPE HDPE Etc. |
Voltage: | 380V50Hz | Weight: | 2880kg |
Dimension(l*w*h): | 7500*1700*2400mm | Certification: | CE/ISO9001 |
High Light: | 12kw plastic bag manufacturing equipment,plastic bag manufacturing equipment Gusset,bag production machine 120pcs Min |
Product Description
Total Power 12kw Bag Making Machine With Gusset 120pcs/min
The machine is suitable for making toilet paper bag,and with functions of automatic counting, punching.
The machine adopts PLC center control, display and operation in touch screen.
The machine is equipped with double photoelectric control , feeding control by servo motor.
Main Technical Parameters
Material | LDPE,HDPE etc. |
Machine Speed | 120pcs/min |
Unwinding Width | ≤500mm |
Unwinding Diameter | ≤1000mm |
Bag Speed | 80pcs/min |
Bag Width | 400mm |
Bag Length | ≤1000mm |
Power Supply | 380V50Hz |
Total Power | 12KW |
Dimension | 7500*1700*2400mm |
Machine Weight | 2880KG |

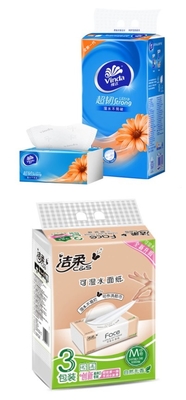

Pictures as reference
Detailed Images
