Width 400mm Sanitary Napkin Diaper Bag Making Machine HDPE LDPE
Product Details:
| Place of Origin: | JIANGYIN |
| Brand Name: | XINLEI |
| Certification: | Letters Patent |
| Model Number: | XLWSJ-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wrapping Film |
| Delivery Time: | 15-20 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 4 set per month |
|
Detail Information |
|||
| Material: | HDPE,LDPE | Voltage: | 220V50HZ/380V50HZ |
|---|---|---|---|
| Machine Type: | Bag Making Machine | Dimension(l*w*h): | 6450*1240*1400mm |
| Weight: | 1800kg | Power: | 5kw |
| Machine Speed: | 180pcs/min | Unwinding Width: | Within 400mm |
| Bag Speed: | 120pcs/min | Bag Length: | Within 500mm |
| High Light: | Width 400mm Sanitary Napkin Making Machine,Diaper Bag Making Machine HDPE,Diaper Bag Making Machine LDPE |
||
Product Description
Width 400mm Sanitary Napkin Bag Making Machine
The machine speed is 180pcs/min,the width is less than 400mm.
The machine with double-head,make bags without stretching.
The machine is suitable for making all kinds of sanitary napkin bags.
This machine adopts PLC center control, display and operation in touch screen.
Main Technical Parameters
| Material | LDPE,HDPE.etc |
| Machine Speed | 180pcs/min |
| Unwinding Width | ≤400mm |
| Unwinding Diameter | ≤800mm |
| Bag Speed | 120pcs/min |
| Bag Width | ≤400mm |
| Bag Length | ≤500mm |
| Power Supply | 220V-380V50Hz |
| Total Power | 5.0KW |
| Dimension | 6450*1240*1400mm |
| Machine Weight | 1800KG |
Feature
1. The overall structure adopt steel plate, anti-static painting and snap-in assembly.
2. Inverter control speed, easy to operate, reduce electric consumption.
3. Feed wheel and pull device controlled by servo motor, high efficiency output.
4. Computer control full automatically, touch screen and human-machine interface, easy for correction and fine adjustment.
5. The unwinding part adopt independent motor and auto lifting design.
6. The whole machine adopt free tension design.
7. The sealing design is heated by heating wire.
8. Back feeding dragging is AC motor control, automatic adjust speed control.

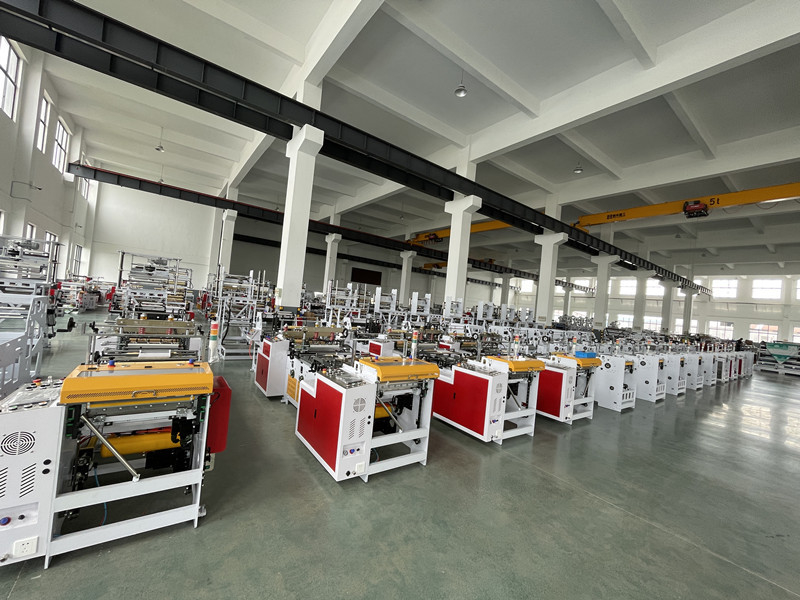

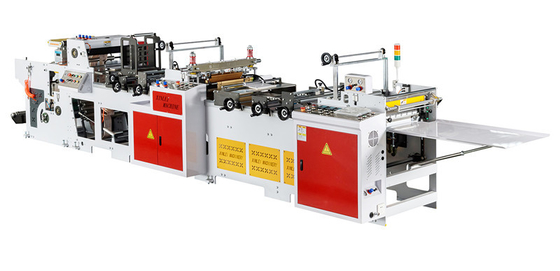

Pictures as reference

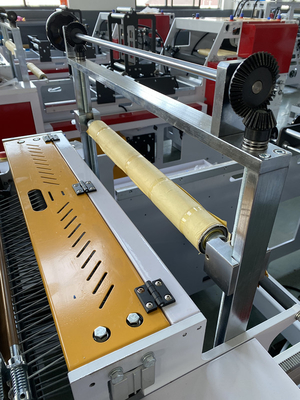

Detailed Images
About Us
Jiangyin ShiXuan Machinery is an integrated company which has gathered development, researching, manufacturing and marketing together. The company abides by the purpose of ′Innovation drives development, quality wins the market′.
Our company can supply customized service for global customers. According to customers′ demand, we can design products and supply long term integrative service of producing, installing and debugging. For service, our company can supply long term technical.
FAQ
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 5days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also car fare.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
