High Speed Side Sealing Machine Film Folding Machine PP HDPE
Product Details:
Place of Origin: | JIANGYIN |
Brand Name: | XINLEI |
Certification: | Letters Patent |
Model Number: | XLGR-1200 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | Negotiable |
Packaging Details: | Wrapping Film |
Delivery Time: | 15-20 work days |
Payment Terms: | L/C, T/T |
Supply Ability: | 4 set per month |
Detail Information |
|||
Material: | LDPE POF CPP | Voltage: | 380V/50HZ |
---|---|---|---|
Condition: | New | Packaging Material: | Plastic |
Warranty: | One Year | Total Power: | 16kw |
Weight: | 3000kg | Sealing Speed: | Less Than 300m |
Folding Speed: | Less Than 400m | Driven Type: | Electric,Pneumatic,Mechanical |
High Light: | High Speed Side Sealing machine,Side Sealing machine HDPE,Film Folding Machine PP |
Product Description

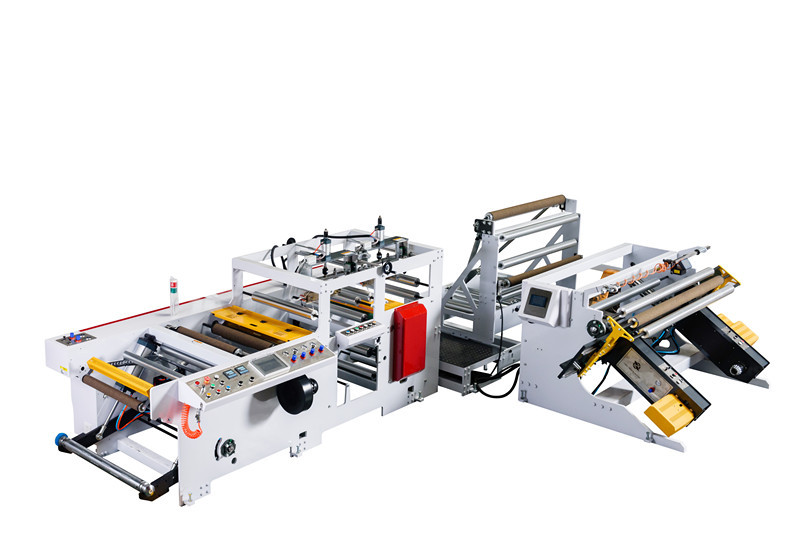

High Speed Side Sealing And Film Folding Machine Of PP
This machine is equipped with no material alarm device,when the material is almost finished,it will alarm in advance.
The main drive,feeding and tension are controlled by servo motor.
This machine adopts PLC centre control, display and operation in touch screen .
The machine is suitable for folding and hot melt edge for HDPE, LDPE, CPP, POF and other sheet material.
Main Technical Parameters
Material | LDPE.HDPE.CPP.POF.etc |
Unwinding width | ≤1200mm |
Unwinding Diameter | ≤1000mm |
Rewinding Diameter | ≤1000mm |
Sealing Speed | ≤300m/min |
Folding Speed | ≤400m/min |
Power Supplly | 380V50-60Hz |
Total Power | 16KW |
Machine Dimension |
3000*1580*1550mm 2500*1480*1300mm 2100*1300*1430mm |
Machine Weight | 3000KG |
Pictures as reference
Detailed Images
