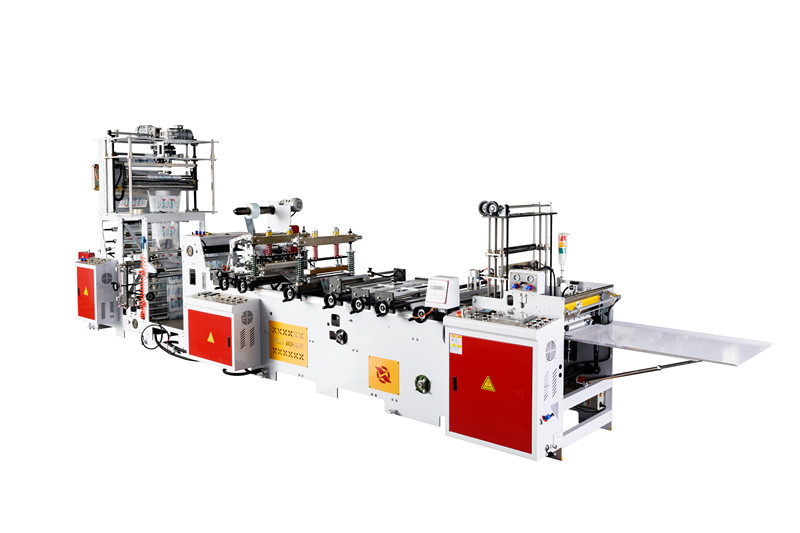

12kw Gusset Bag Making Machine
Product Details:
Place of Origin: | JIANGYIN |
Brand Name: | XINLEI |
Certification: | Letters Patent |
Model Number: | XLCZY-500 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | Negotiable |
Packaging Details: | Wrapping Film |
Delivery Time: | 15-20 work days |
Payment Terms: | L/C, T/T |
Supply Ability: | 4 set per month |
Detail Information |
|||
Bag Type: | Tissue Bag | Machine Type: | Bag Making Machine |
---|---|---|---|
Voltage: | 380V50Hz | Material: | LDPE HDPE Etc. |
Condition: | New | Weight: | 2880kg |
Dimension(l*w*h): | 7500*1700*2400mm | Warranty: | One Year |
Certification: | CE/ISO9001 | Power(w): | 12kw |
After-sales Service Provided: | Commissioning And Training,Video Technical Support | ||
Highlight: | 12kw Gusset Bag Making Machine,LDPE HDPE Gusset Bag Making Machine,Gusset Bag Making Machine 120pcs min |
Product Description
Bag Making Machine With Gusset For Toilet Paper Bag,Tissue Bag Making
The machine adopts PLC center control, display and operation in touch screen,double photoelectric control , feeding control by servo motor, with these functions of automatic counting, punching, conversion of white bag and color bag. Suitable for making toilet paper bag, soft paper extraction bag, etc.The machine speed is 120pcs/min.The bag speed 80pcs/min.
Main Technical Parameters
Material | LDPE,HDPE etc. |
Machine Speed | 120pcs/min |
Unwinding Width | ≤500mm |
Unwinding Diameter | ≤1000mm |
Bag Speed | 80pcs/min |
Bag Width | 400mm |
Bag Length | ≤1000mm |
Power Supply | 380V50Hz |
Total Power | 12KW |
Dimension | 7500*1700*2400mm |
Machine Weight | 2880KG |
Pictures as reference
Detailed Images
